quadratic

Stoner.analysis.fitting.models.generic.quadratic(x, a, b, c)[source]

Calculate a simple quadratic fitting function.

Parameters
  • x (aray) – Input data

  • a (float) – Quadratic term co-efficient

  • b (float) – Linear term co-efficient

  • c (float) – Constant offset term

Returns

Array of data.

\(y=ax^2+bx+c\)

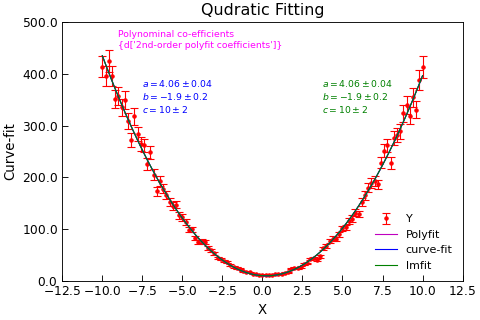

Example

"""Example of Quadratic Fit."""
from numpy import linspace
from numpy.random import normal
import matplotlib.pyplot as plt

from Stoner import Data
from Stoner.analysis.fitting.models.generic import quadratic, Quadratic

# Make some data
x = linspace(-10, 10, 101)
y = quadratic(x + normal(size=len(x), scale=0.1), 4, -2, 11) * normal(
    size=len(x), scale=0.05, loc=1.0
)
s = y * 0.05
d = Data(x, y, s, setas="xye", column_headers=["X", "Y"])
d.plot(fmt="r.")

d.polyfit(result=True, header="Polyfit")
d.setas = "x..y"
d.plot(fmt="m-", label="Polyfit")
d.text(
    -9,
    450,
    "Polynominal co-efficients\n{}".format(d["2nd-order polyfit coefficients"]),
    fontdict={"size": "x-small", "color": "magenta"},
)

d.setas = "xy"
d.curve_fit(quadratic, result=True, header="Curve-fit")
d.setas = "x...y"
d.plot(fmt="b-", label="curve-fit")
d.annotate_fit(
    quadratic,
    prefix="quadratic",
    x=0.2,
    y=0.65,
    fontdict={"size": "x-small", "color": "blue"},
)

d.setas = "xy"
fit = Quadratic()
p0 = fit.guess(y, x=x)
d.lmfit(Quadratic, p0=p0, result=True, header="lmfit")

d.setas = "x...y"
d.plot(fmt="g-", label="lmfit")
d.annotate_fit(
    Quadratic,
    prefix="Quadratic",
    x=0.65,
    y=0.65,
    fontdict={"size": "x-small", "color": "green"},
)
d.ylim(0, 500)
d.title = "Qudratic Fitting"
plt.legend(loc=4)
